Details

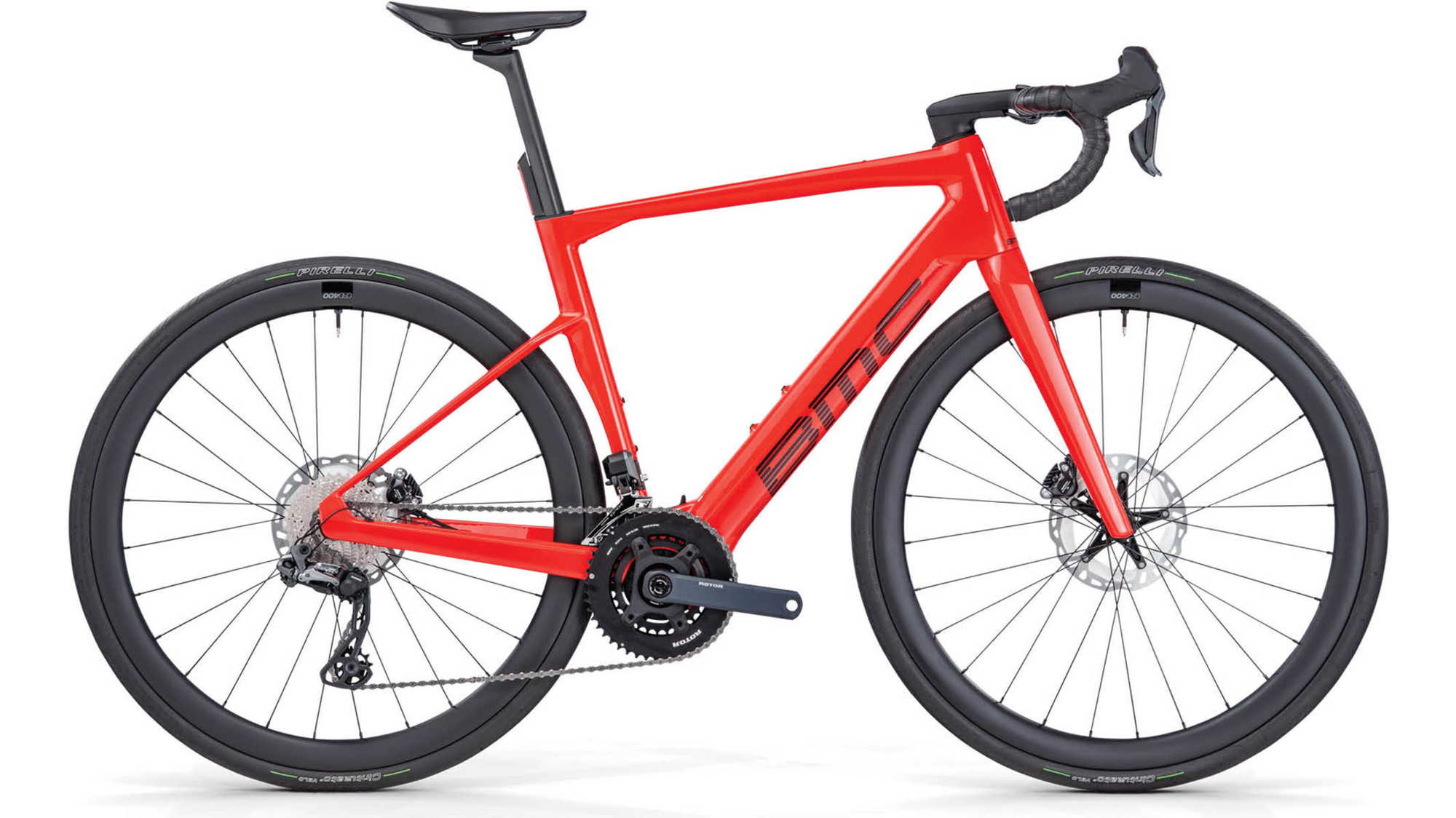

Make every road your reality. For this interpretation of the Roadmachine, we refined the frame design, allying it with the super light and quiet TQ-HPR50 system that’s seamlessly integrated into the Premium Carbon frame. All of this is complemented by the smooth-shifting Shimano GRX Di2, our CRD-400 SL wheels and ultra-modern integration from front to back. This e-road bike isn’t just good on paper; the Roadmachine 01 AMP TWO brings its performance everywhere you go.
Hidden Power
Roadmachine 01 AMP extends your journey thanks to the revolutionary TQ-HPR50 drive unit. Powerful, light and compact, it is seamlessly integrated into the frame for an uncompromised look and natural ride feeling.
Fast and Forgiving
The most capable version of our Tuned Compliance Concept Endurance technology paves the way for a fast and forgiving ride. Take the edge of the roughest roads to push harder and ride further with the ultimate balance between comfort and performance.
Safety First
Light up your ride with integrated safety features. A custom BMC backlight is connected directly to the battery for long life and the computer mount offers easy installation of a front light.
ICS2
ICS2, with significant weight savings, high stiffness, clean aesthetics and integrated device mounts for the most popular devices.
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Reach (mm) | 370 | 379 | 383 | 388 | 393 | 398 |
| Stack (mm) | 525 | 550 | 570 | 595 | 620 | 645 |
| Bar Drop (mm) | 125 | 125 | 125 | 125 | 125 | 125 |
| Bar Reach (mm) | 70 | 70 | 70 | 70 | 70 | 70 |
| Bar Width (mm) | 400 | 420 | 420 | 420 | 420 | 440 |
| BB Drop (mm) | 75 | 75 | 75 | 75 | 75 | 75 |
| Crank Length (mm) | 170 | 170 | 170 | 170 | 170 | 170 |
| Fork Length (mm) | 380 | 380 | 380 | 380 | 380 | 380 |
| Fork Rake (mm) | 50 | 50 | 45 | 45 | 45 | 45 |
| Front Center (mm) | 579 | 596 | 594 | 607 | 620 | 633 |
| Head Tube (mm) | 112 | 138 | 154 | 181 | 207 | 233 |
| Head Tube Angle | 71.4 | 71.4 | 72.2 | 72.2 | 72.2 | 72.2 |
| Rear Center (mm) | 420 | 420 | 420 | 420 | 420 | 420 |
| Seat Angle | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 |
| Seat Tube (mm) | 420 | 460 | 500 | 525 | 545 | 575 |
| Seatpost Length (mm) | 230 | 280 | 280 | 280 | 280 | 330 |
| Seatpost Offset (mm) | 15 | 15 | 15 | 15 | 15 | 15 |
| Standover Height (mm) | 728 | 755 | 786 | 810 | 829 | 850 |
| Stem Angle | -12.5 | -12.5 | -12.5 | -12.5 | -12.5 | -12.5 |
| Stem Length (mm) | 90 | 90 | 100 | 110 | 110 | 110 |
| Top Tube (mm) | 519 | 535 | 544 | 556 | 568 | 581 |
| Trail (mm) | 63 | 63 | 63 | 63 | 63 | 63 |
| Wheelbase (mm) | 987 | 1005 | 1002 | 1015 | 1028 | 1041 |
| Size | Rider Height | Rider Height (in) |
|---|---|---|
| 47 | < 162 | < 5'3" |
| 51 | 162 - 174 | 5'3" - 5'8" |
| 54 | 172 - 180 | 5'7" - 5'11" |
| 56 | 178 - 186 | 5'10" - 6'1" |
| 58 | 184 - 192 | 6'0" - 6'3" |
| 61 | > 190 | > 6'3" |
Specs
| Motor | TQ-HPR50 Drive Unit |
|---|---|
| Pedals | Sold Separately |
| Battery | TQ 360 Wh Battery |
| Charger | TQ HPR-50 4A Charger |
| Controller/Display | TQ Display | 2" O-LED | Bluetooth / ANT+ |
| Fork | Roadmachine 01 AMP Premium Carbon with Tuned Compliance Concept Endurance | Flat Mount Disc | 12x100mm Thru-Axle |
| Hubs | CRD-400 |
| Rims | CRD-400 Carbon - Tubeless Ready - 40mm |
| Stem | BMC ICS2 - Integrated Cockpit System Technology |
| Chain | SHIMANO HG-601 11 spd |
| Frame | Roadmachine 01 AMP Premium Carbon with Tuned Compliance Concept Endurance | Integrated Battery | Integrated Rear Light | Internal Cable Routing | ICS Technology Stealth Cable Routing | Fender Mounts | Flat Mount Disc | 12x142mm Thru-Axle |
| Tires | Pirelli Cinturato Velo TLR, 32mm |
| Brakes | SHIMANO GRX BR-RX810 |
| Saddle | Fizik Argo Tempo R5 (150mm) |
| Wheels | CRD-400 Carbon - Tubeless Ready - 40mm |
| Crankset | Rotor eVegast 48-31T |
| Seatpost | Roadmachine 01 AMP Premium Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible |
| Shifters | SHIMANO GRX Di2 ST-RX815 11spd |
| Handlebars | BMC RAB 02, Ergo Top Shape, Compact Bend |
| Brake Levers | SHIMANO GRX BR-RX810 |
| Rear Derailleur | SHIMANO GRX Di2 RD-RX817 11spd |
| Front Derailleur | SHIMANO GRX Di2 FD-RX815 |
| Cassette/Freewheel | SHIMANO CS-HG800 11-34T 11 speed |
* Subject to change without notice.
