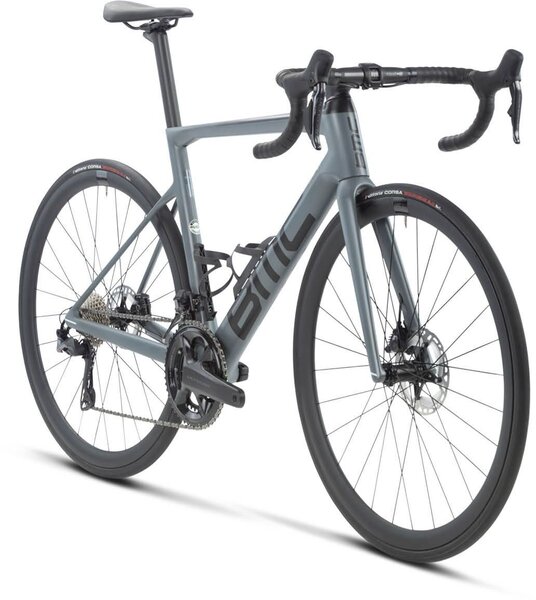

The original Teammachine SLR01 created the blueprint for the modern road bike. After more than a decade of obsessive innovation and development, today's world-beating Teammachine SLR01 still leads where others follow. Its TCC Race-engineered Premium Carbon frame includes the Aerocore Design system, ICS technology and Stealth Cable Routing. The latest Shimano Ultegra Di2 12-speed ensures an excellent performance, backed up by CRD-351 Carbon tubeless-ready wheels, an ICS2 stem and integrated cockpit design.
Size | 47 | 51 | 54 | 56 | 58 | 61 |
---|---|---|---|---|---|---|
Rider Height CM | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
Stack MM | 506 | 530 | 550 | 565 | 584 | 608 |
Reach MM (reach) | 367 | 377 | 386 | 392 | 401 | 409 |
Seat Tube MM (st) | 423 | 468 | 504 | 524 | 545 | 574 |
Top Tube MM (tt) | 517 | 534 | 549 | 559 | 574 | 589 |
Head Tube MM (ht) | 110 | 130 | 145 | 165 | 184 | 210 |
Seat Tube Angle (sa) | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
Head Angle (ha) | 71.5 | 71.5 | 72.3 | 72.3 | 72.3 | 72.3 |
Rear Center MM (rc) | 410 | 410 | 410 | 410 | 410 | 410 |
Front Center MM (fc) | 568 | 586 | 589 | 599 | 614 | 630 |
Wheelbase MM (wb) | 968 | 986 | 989 | 1000 | 1015 | 1030 |
BB Drop MM (drop) | 69 | 69 | 69 | 69 | 69 | 69 |
Fork Length MM (fl) | 368 | 368 | 368 | 368 | 368 | 368 |
Fork Rake MM (fr) | 48 | 48 | 43 | 43 | 43 | 43 |
Trail MM (trail) | 63 | 63 | 63 | 63 | 63 | 63 |
Crank Length MM | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
Stem Length MM | 90 | 100 | 100 | 110 | 110 | 120 |
Stem Angle | -12.5 | -12.5 | -12.5 | -12.5 | -12.5 | -12.5 |
Bar Width MM | 400 | 420 | 420 | 420 | 420 | 440 |
Bar Drop MM | 125 | 125 | 125 | 125 | 125 | 125 |
Bar Reach MM | 70 | 70 | 70 | 70 | 70 | 70 |
Post Offset MM | 15 | 15 | 15 | 15 | 15 | 15 |
Specs
Frame | Teammachine SLR 01 Premium Carbon with Aerocore Design ICS Technology Stealth Cable Routing Integrated Aerocore Bottle Cages Stealth Dropout Design TCC Race Compliance Level PF86 Bottom Bracket Flat Mount Disc 12x142mm Thru-Axle |
---|---|
Fork | Teammachine SLR 01 Premium Carbon ICS Technology Stealth Cable Routing TCC Race Compliance Level Stealth Dropout Design Flat Mount Disc 12x100mm Thru-Axle |
Rims | CRD-351 Carbon - Tubeless Ready - 35mm |
Hubs | CRD-351 |
Tires | Vittoria Corsa - 25mm |
Chainrings | SHIMANO Ultegra 12spd 52-36T |
Shifters | SHIMANO Ultegra Di2 12spd |
Rear Derailleur | SHIMANO Ultegra Di2 12spd |
Cassette/Freewheel | SHIMANO Ultegra 12spd 11-30T |
Chain | SHIMANO Ultegra 12spd |
Brakes | SHIMANO Ultegra - RT-MT800 Rotors (160/140) |
Handlebars | BMC RAB 02 - Ergo Top Shape - Compact Bend |
Stem | BMC ICS2 - Integrated Cockpit Design |
Seatpost | Teammachine SLR 01 Premium Carbon D-Shaped Seatpost, 15mm Offset |
Saddle | Fizik Argo Vento R5 (140mm) |
Pedals | Sold separately |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Iron Grey/Black / 47cm | 07630027883329 | 30002271 | |
Iron Grey/Black / 51cm | 07630027883312 | 30002272 | |
Iron Grey/Black / 54cm | 07630027883305 | 30002273 | 210000044039 |
Iron Grey/Black / 56cm | 07630027883299 | 30002274 | |
Iron Grey/Black / 58cm | 07630027883282 | 30002275 | 210000044511 |
Iron Grey/Black / 61cm | 07630027883275 | 30002276 |
