BMC Teammachine SLR SEVEN

No Image Available
This item is currently not available.

Details

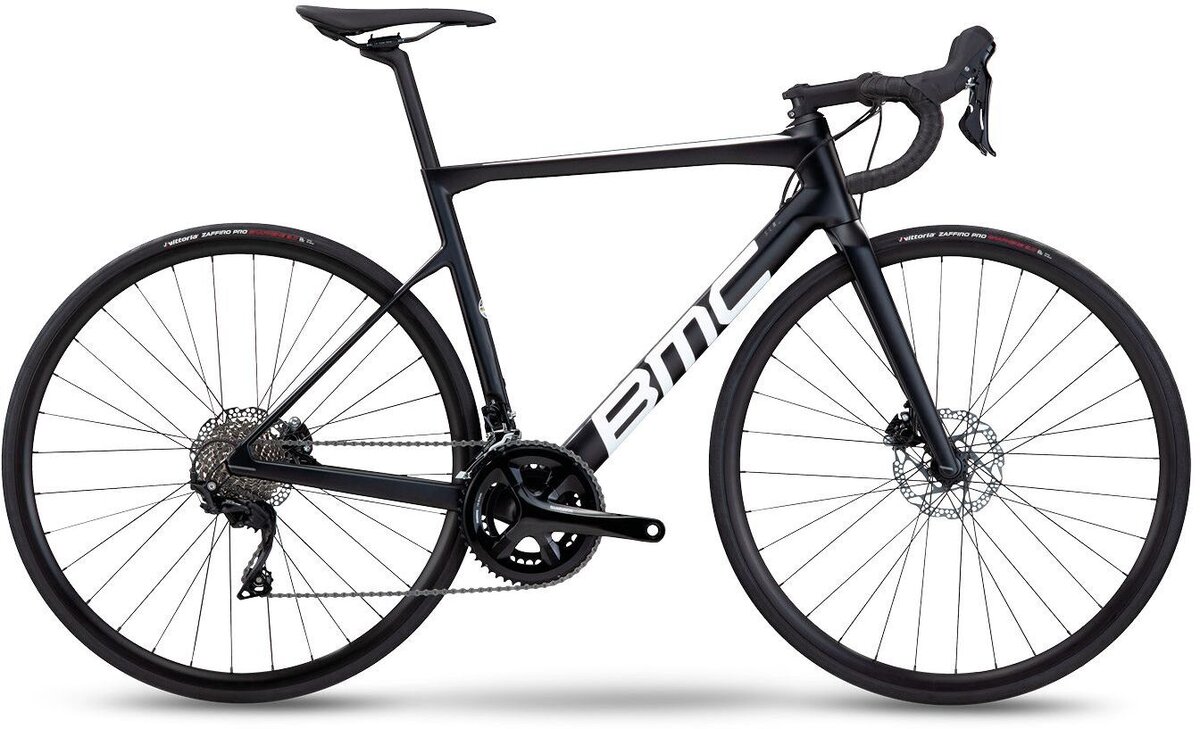

The Teammachine SLR, legendary performance in a widely accessible package. Its Teammachine SLR Carbon frame and fork have been designed using TCC Race Technology, offers Stealth Dropouts and internal cable routing. Introducing the carbon Teammachine SLR range, the Teammachine SLR SEVEN has a Shimano 105 11-speed compact groupset, with RS510 crankset, PRD23 wheelset and a compact drop bar.

Geometry Chart:
Size475154565861
Rider Height CM <166 166-174 172-180 178-186 184-192 >190
Stack MM 506 530 550 565 584 608
Reach MM (reach) 367 377 386 392 401 409
Seat Tube MM (st) 423 468 504 524 545 574
Top Tube MM (tt) 517 534 549 559 574 589
Head Tube MM (ht) 110 130 145 165 184 210
Seat Tube Angle (sa) 73.5 73.5 73.5 73.5 73.5 73.5
Head Angle (ha) 71.5 71.5 72.3 72.3 72.3 72.3
Rear Center MM (rc) 410 410 410 410 410 410
Front Center MM (fc) 568 586 589 599 614 630
Wheelbase MM (wb) 968 986 989 1000 1015 1030
BB Drop MM (drop) 69 69 69 69 69 69
Fork Length MM (fl) 368 368 368 368 368 368
Fork Rake MM (fr) 48 48 43 43 43 43
Trail MM (trail) 63 63 63 63 63 63
Crank Length MM 170 170 172.5 172.5 175 175
Stem Length MM 90 90 100 110 110 120
Stem Angle ±8 ±8 ±8 ±8 ±8 ±8
Bar Width MM 400 420 420 420 420 440
Bar Drop MM 125 125 125 125 125 125
Bar Reach MM 70 70 70 70 70 70
Post Offset MM 15 15 15 15 15 15

Specs

Frame Teammachine SLR Carbon with Aerocore Design, Stealth Dropout Design, TCC Race Compliance Level, PF86 Bottom Bracket, Flat Mount Disc, 12x142mm Thru-Axle, Optimized for Aerocore Bottle Cages
Fork Teammachine SLR Carbon, TCC Race Compliance Level, Internal Cable Routing, Flat Mount Disc, Stealth Dropout Design, 12x100mm Thru-Axle
Rims PRD23 - 23mm
Hubs CL-712 (F)/RXC-1425 (R) - Thru Axle
Tires Vittoria Zaffiro Pro - 25mm
Chainrings SHIMANO FC-RS510 50-34T
Shifters SHIMANO 105
Rear Derailleur SHIMANO 105
Cassette/Freewheel SHIMANO 105 11-32T
Chain SHIMANO 105
Brakes SHIMANO 105 - RT54 Rotors (160/160)
Handlebars BMC RAB 02 - Ergo Top Shape - Compact Bend
Stem BMC RSM01
Seatpost Teammachine SLR Carbon D-Shaped Seatpost 15mm Offset
Saddle VL-1489 BMC
Pedals Sold separately

* Subject to change without notice.
